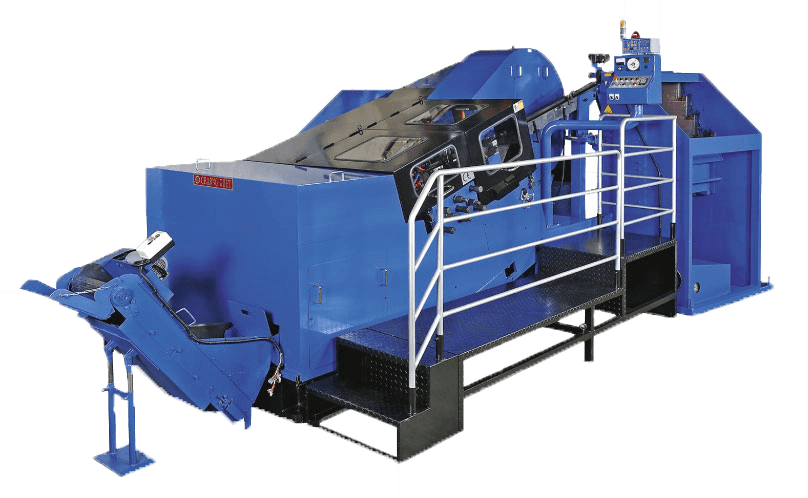

CRG-708H / CGR-806H
High Speed Automatic Thread Rolling Machine
-
Patent No.124107Automatic thread rolling machine feed mechanism
-
Patent No.125424Automatic thread rolling machine dies adjusting mechanism
SPECIFICATIONS
| Model | Blank Diameter (mm) |
Blank Length Max. (mm) |
Blank Thread Length Max. (mm) |
Motor (HP) |
Output (pcs./min) |
Dimension (mm)(L*W*H) |
Weight (kg) |
Thread Rolling Die Size (mm) |
| CGR-708H | 14-20 | 30-200 | 150 | 50 | 50/75 | 4800*2200*2200 | 11500 | 50*210*290/ 330 |
| CGR-806H | 16-24 | 50-180 | 150 | 60 | 43/65 | 5600*2300*2300 | 18500 | 50*180*380/ 420 |
We reserve the right to change the design & specifications without notice.
