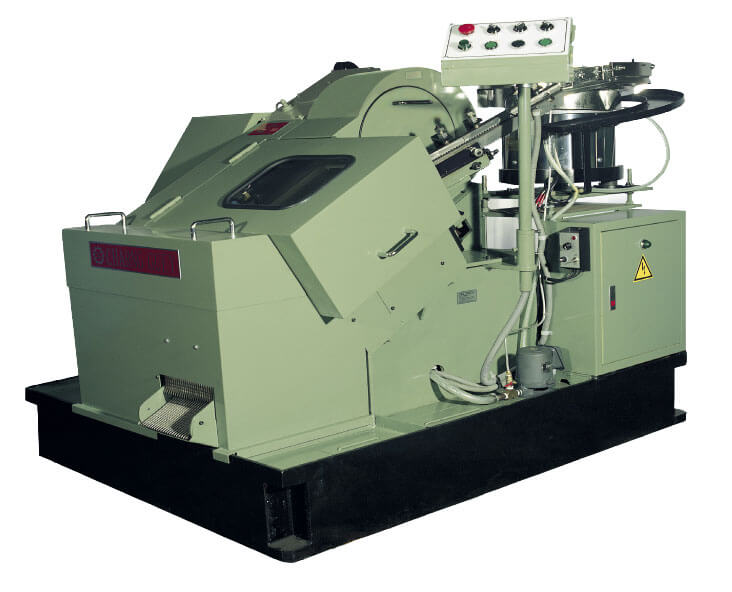

CGR-6R / CGR-8R
Automatic Thread Rolling Machine
-
Powerful pump automatic oil supply circuit.
-
Patent No.124107Automatic thread rolling machine feed mechanism
SPECIFICATIONS
| Model | Blank Diameter (mm) |
Blank Length Max. (mm) |
Blank Thread Length Max. (mm) |
Motor (HP) |
Output (pcs./min) |
Dimension (mm)(L*W*H) |
Weight (kg) |
Thread Rolling Die Size (mm) |
| CGR-6R | 4-6 | 10-50 | 40 | 5 | 220/250 | 1750*1290*1310 | 1800 | 25*55*90/ 105 |
| CGR-8R | 6-8 | 16-75 | 60 | 10 | 180/200 | 2200*1500*1550 | 2450 | 25*80*108/ 127 |
| CGR-8R4 | 6-8 | 16-100 | 60 | 10 | 160/180 | 2200*1500*1600 | 2700 | 25*105*108/ 127 |
We reserve the right to change the design & specifications without notice.
